PLC Controlled Roofing Sheet Roll Forming Machine Dimension L7500 * W1600 * H1300 MM

Name: PLC Controlled Roofing Sheet Roll Forming Machine Dimension L7500 W1600 H1300 MM
Brand: SHITONG
Price: 1 USD

Wholesale PLC Controlled Roofing Sheet Roll Forming Machine Dimension L7500 * W1600 * H1300 MM from china suppliers

Brand Name : SHITONG

Model Number : T840

Certification : CE/ISO 9001

Place of Origin : CHINA

MOQ : 1 SET

Price : contact me to get the lowest price

Payment Terms : L/C, T/T

Supply Ability : 30 sets/ month

Delivery Time : 30days

Packaging Details : the main machine is nude

Raw material : PPGI PPGL GI GL alumin color steel coil

Voltage : 380V 50HZ 3phase

Applicable industries : Manufacturing Plant,Building Material Shops,Construction works

name : Roofing Sheet Roll Forming Machine

Color : Blue or as your request

Roller material : No.45 forged solid steel

Contact Now

PLC Controlled Automatic Trapezoid Metal Roof IBR Sheet Roll Forming Machine

Quick Details

Warranty: 1 Year
Type: Tile Forming Machine
Production Capacity: 8-15M/Min
Certification: CE / ISO
Condition: New
Tile Type: Steel
Use: Roof
Place of Origin: Hebei, China (Mainland)
Voltage: 380V 50HZ 3Phases
Dimension(L*W*H): 7500*1600*1300Mm
Weight: 4.5T
After-sales Service Provided: Engineers available to service machinery overseas
Raw Material: PPGI
Machine's Color: Customized
Motor Brand: Chinese famous brand
PLC Brand: Delta / MITSUBISHI / SIEMENS
Operate Stype: Automatic / Manual
Profile Drawing: as customers requirement
Processing Thickness: 0.3-0.7mm
Cutting Blade Material: Cr12Mov with quenched treatment

Technical Parameters:

No.	Item	Specification
1	Can Formed Material	PPGI,GI,AI
2	Equipment operation	Automatic
3	Voltage	380V 60Hz 3Phase or as your requirement
4	Thickness of sheet (mm)	0.3-0.8mm
5	Material width(mm)	As your requirement
6	Cover Width of the sheet after formed	as your drawing
7	The size of the roll forming machine	6000mmx1600mmx1400mm
8	Speed	12-15m/min
9	Diameter of shaft	75mm
10	Weight of the Machine	5500-6500KGS
11	Material of rollers	C45 steel quenched and chromed
12	Motor brand	Siemens or Guomao
13	PLC	Siemens or Delta or Mitsubushi
14	Total power (kw)	9.5kw
15	Power of hydraulic system	4kw
16	Power of main molding core	5.5kw

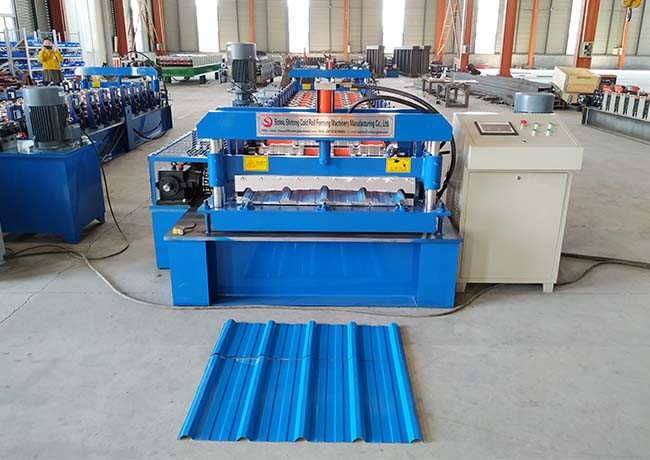

main machine pictures
