Automatic high quality used color steel sheet metal roll forming machine
1. Company information
BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.
It is located in northwest of CangZhou, as a long history of cold roll forming machine production
base. All products comply with international quality standards
and are greatly appreciated in variety of different markets throughout the world, such
as Asia, Africa, Europe,South America, and Australia and so on.
sturcture and reasonable design.
2. Technical parameters:
| configurations | manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system | |
| Material | processing material | Colored Steel plate, Galvanized Board, Aluminum Plate | |
| | thickness | 0.3mm-0.8mm | |
| | Efficienty width | 750mm | |
| | Coil width | 1000mm | |
| Manual decoiler | The maximum load capacity:5 ton | Expand by band | |
| | The coil inside diameter:450-550mm | | |
| | Suitable Coil width:1250mm | | |
| Main Forming machine | Forming steps | 13steps |
| | Shaft diameter | 70 mm |
| | Thick of arch frame | 16mm |
| | Frame body | High strength steel pipe weld with color steel sheet cover |
| | roller material | 45# steel |
| | shaft material | 45# steel |
| | cutter material | Cr12 mold steel with quenched treatment |
| | Transmission | By 1” chain |
| | Work speed | 20-25m/min |
| Hydraulic system | Automatic hydraulic cutting after forming, without wasting. |
| Control Device | PLC control touch screen Program language: English/Chinese(or as required) |
| Operating mode | Button+touch screen |
| | Total power | 4 kw | |
| | Main body color | Blue and orange(or as required) |
| | Voltage | 380v/50hz/3ph(or as required) |

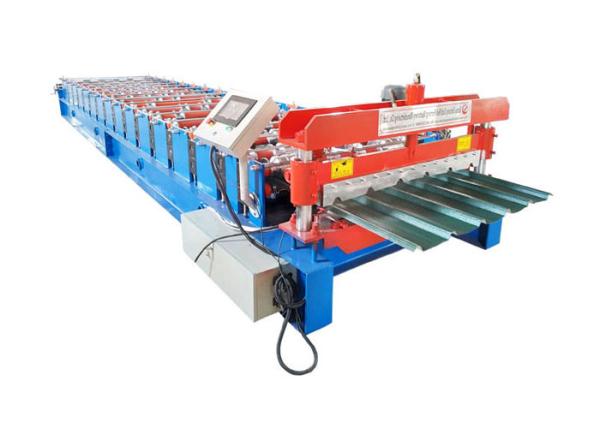

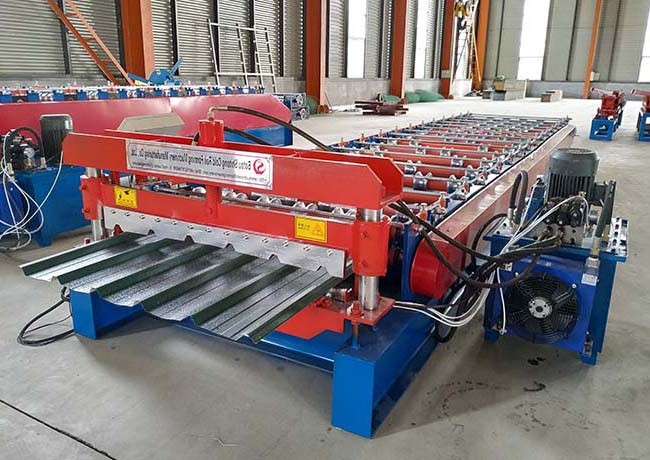

3. Machine picture
Before ordering:
We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.
Then your product is hot sale roof tile .
We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of
material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.
We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can
order the material coil with lowest price.
During production:
We can send the pictures to show you the schedule of your roll forming machines.
We will show you my blogger account for you to learn knowledge of roll forming machine if you would like
We will ask you what color of the roll forming machine body. Produce the machine under your suggestion
After-sale service:
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine
We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.
( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
