High speed IBR sheet steel roofing matal roll forming machines production line
1. Know about our machine
The Advantages of Roll forming machine: solid shaft, PLC control, hydraulic system, fast production speed,long spanlife
Can design the machine as your drawing,machine color as you favor.
Delivery: Large capacity and Fast delivery,can accept third-party check before delivery
Perfect after-sales service: Our engineer can teach you how to install and operate the machine at your place,all machine parts are available.
The whole line including:uncoiler,roll forming machine,hydraulic station,hydraulic cutter,PLC control system, receiving table.
2. Specifications of the roll forming production line
| Model | roll forming machine |
| Main motor power | 11 kw |
| Hydraulic station power | 7.5 kw |
| Machine transmission | Driven by gearbox |
| Shearing die | Gr12 |
| Sprocket | P-25.4 |
| Transmission speed | 30-35m/min |
| The bearing capacity of manual decoiler | 5 tons |
| Sprocket chain specifications | 1 inch |
| Roller station | 15 rows |
| Main frame structure | 350H steel |
| Diameter of principal axis | 75mm |
| Material of roller | 45#steel hard chrome Hardness HR55°—57° Solid shaft |
| Cutting method | hydraulic cut |
| Thickness | 0.3-0.7mm |
| Feeding material width | 1000mm |
3. Our after sale service
We are responsible for the installation and debugging if you buy the wall board making roll forming machine . Equipment parts are guaranteed for one year, Within a year of equipment parts nonhuman damage(in addition to electric), we undertake free swap or maintenance for you.
4. What we can produce
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

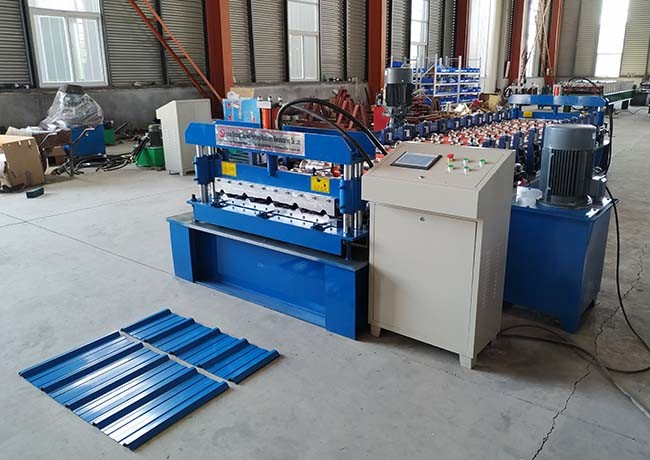

5. Some machine pictures for your reference
6. Some details you may care about
1):How many workers operate this machine to manufacture?
A:Only 1-2 worker.
2):How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
3):How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
4): How can we be assured that you will deliver us quality machine with spare parts?
A:Customers to send the technical people to our factory for checking the quality. We can send the technicians to the buyer`s factory for the installation of the machine.
7. Our company profile
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufacture of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
Product Tags:
|
|

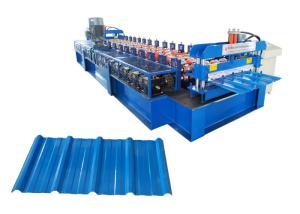

High Speed Roofing Sheet Roll Forming Machine Main Frame Structure 350H Steel Images
|
