Double Layer Roofing Sheet Panel China Steel Structure Cold Roll Forming Machine
Work flow¶meter

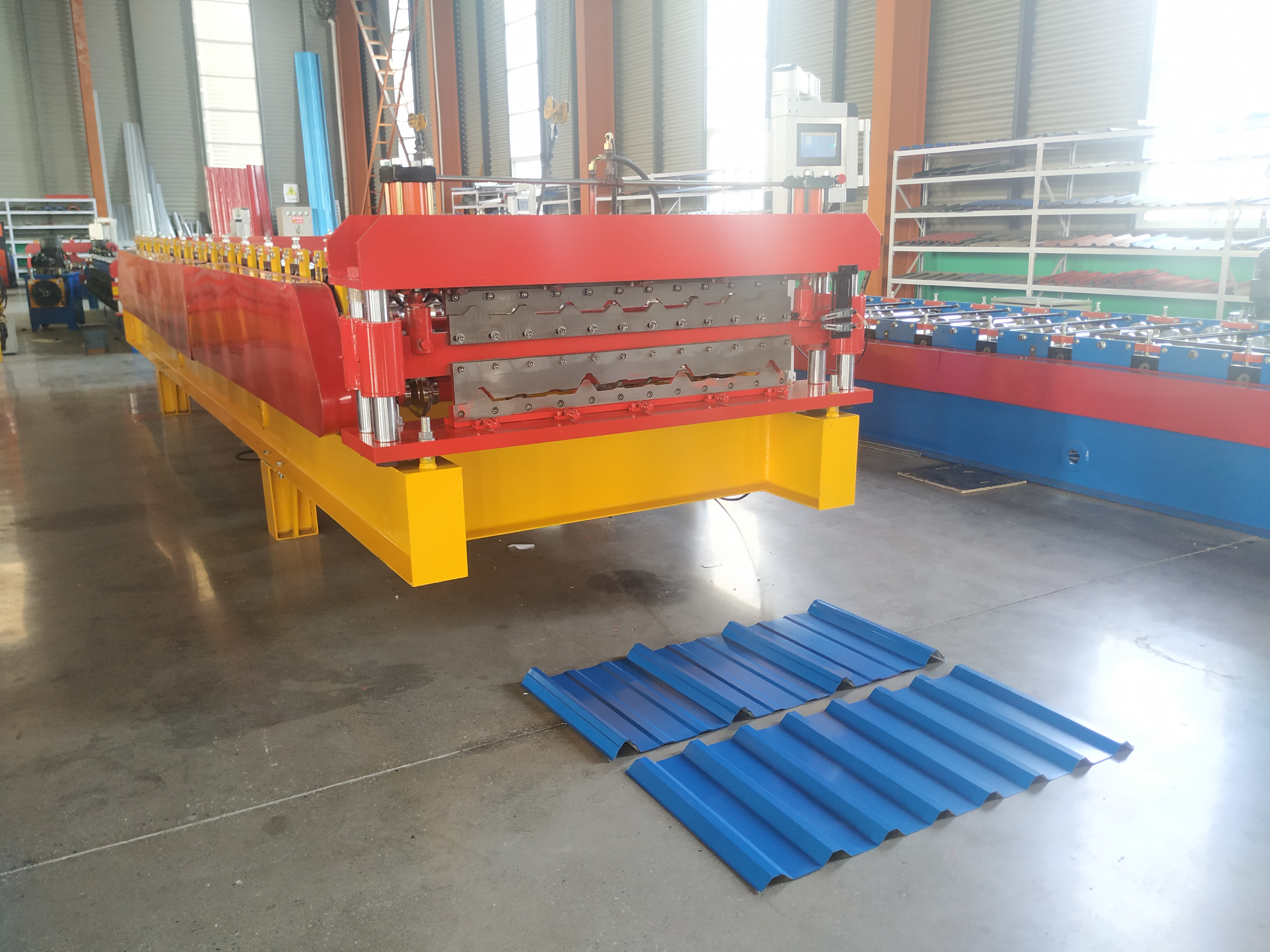

Double layer roofing machine
Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1000/1250 mm coil sheet |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 7-15 stations |
| 4 | Shaft Diameter | 75 mm |
| 5 | Productivity | 8-12 m/min |
| 6 | Rollers' material | 45# steel forge |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 5-8 ton |
| 9 | length | 5.5-11m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6-2 inch |
| 16 | Cutting system | Hydraulic cutter
|
Accessories
Product Description
Roll forming machine is composed of unwinding, forming, and post-forming cutting. The color panels produced by the production of flat and beautiful appearance, uniform paint pattern, high strength, and durability are widely used in industrial and civil buildings, such as workshops, warehouses, gymnasiums, exhibition halls, theaters, etc. Faces and walls.
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
.
Our Services
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
FAQ
1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station
(1hour), then we can pick up you to factory(40min).
Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west
station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 12 mounts, all technicals are ready to serve you at any time.
4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send
new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
