Full Automatic Three Layer Metal Roofing Sheet Forming Making Machine
Production Process:
Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving

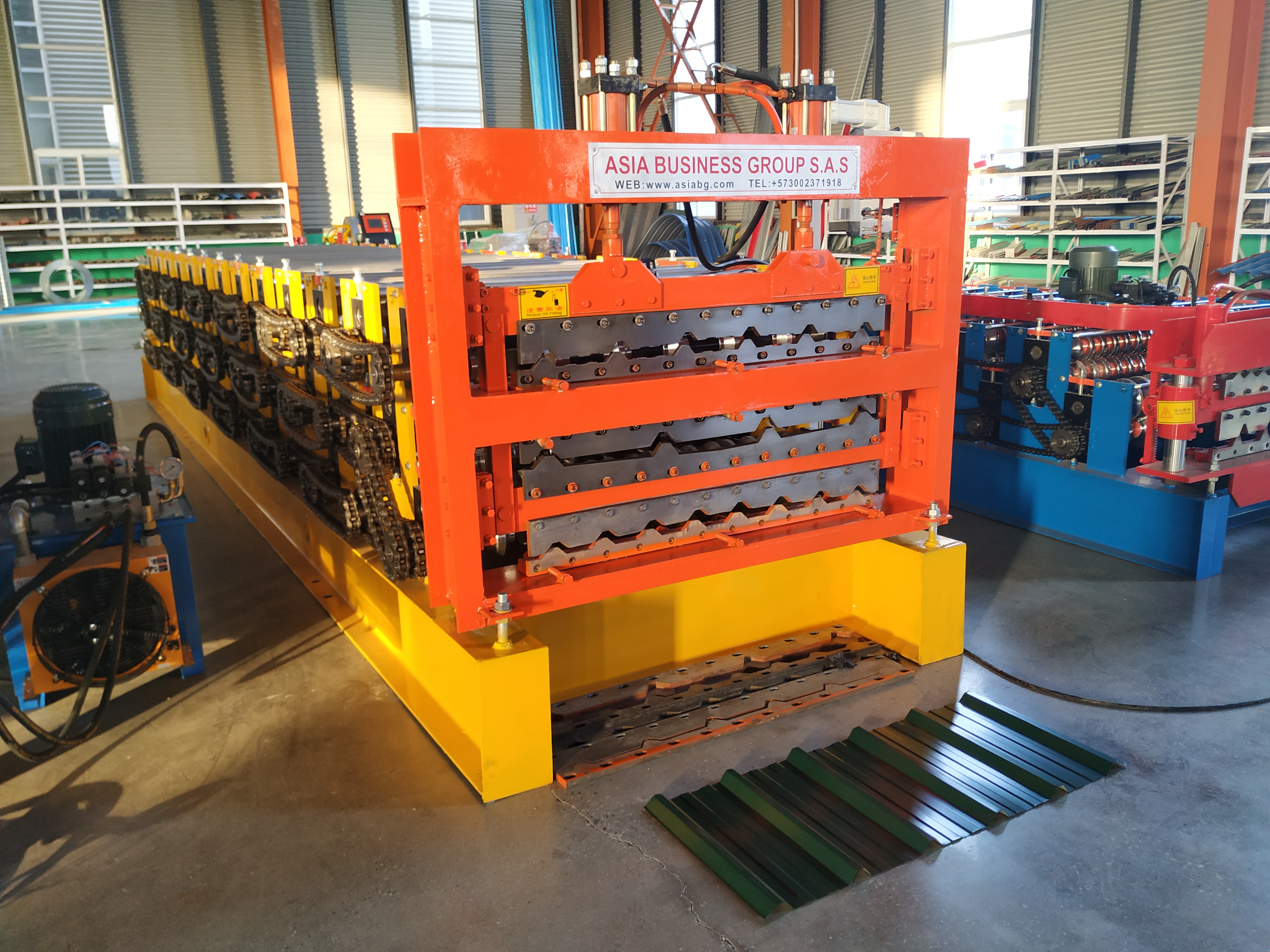

Colored Steel Three layer Roof Tile Roll Forming Making Machine
The three layers roll forming machine will be three models are perfect combination, reasonable structure, beautiful appearance. With the advantages of saving space, simple operation, especially for small site construction and customer use.The machine is mainly composed of feed into the platform, forming host, forming shear device, hydraulic station, computer control system and other parts. Up and down conversion operation is simple, just through the control cabinet on the switch button to control the control of each layer, power can also be controlled by the clutch of each layer. Each layer of the model according to customer requirements.
Processing Flow Diagram of Machine:
Specification
We can design according to your require,please send me your profile drawing.
| Name | Color Steel Double Layer Roof Metal Sheet Forming Machine |
| Material Spec | Galvanized steel,color steel |
| Input Width | 1000mm or your need |
| Coil thickness | 0.3-0.8mm |
| Forming speed | 8-15m/min |
| Main power | 5.5kw |
| Hydraulic power | 4kw |
| Roll stand | as the final design |
| Roller material | high grade No.45 forged steel, with 0.05mm plated coating |
| Shaft material | high grade No.45 forged steel,diameter 75mm |
| Size length*width*high | 7.5*1.3m*1.3m |
| Total Weight | 7T |
| Voltage | 380 volt or as you need |
Standard Configuration:
| 5 tons Manual decoiler | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic pump system | 1 set |
| PLC control system | 1 set |
| Receiving Table | 1 set |
| Spare parts | 1 set |
Manual Decoiler
| Capacity | 5T |
| Inner Diameter | 450-550mm |
| Width | 1250mm |
Spare Parts
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 45 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
