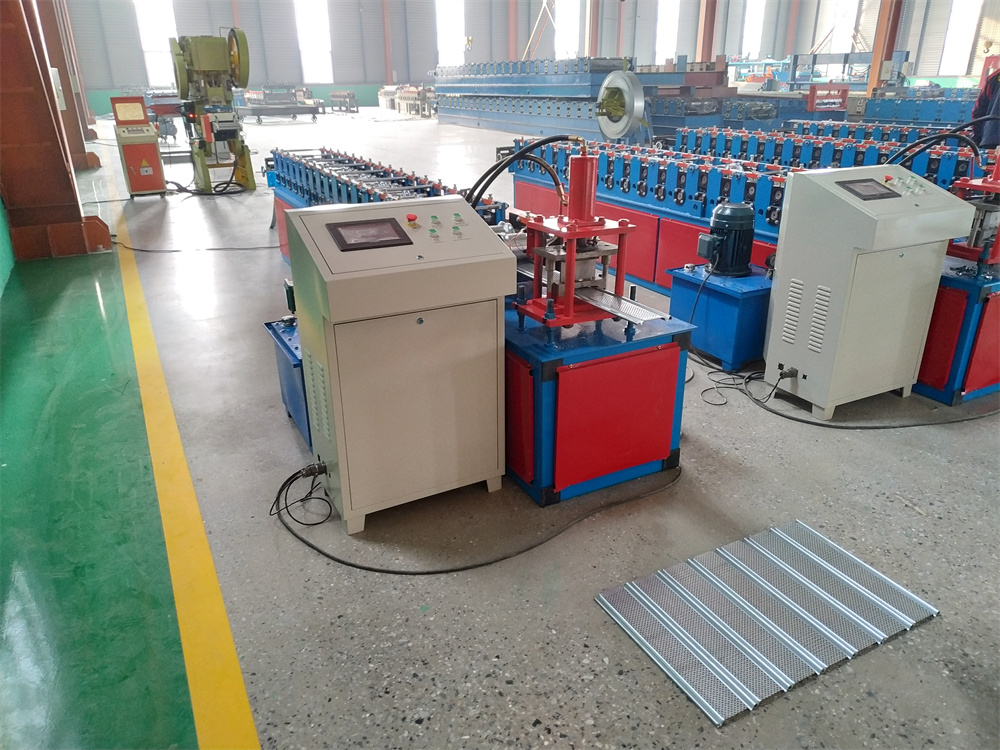

Hydraulic Cutting Ppgi Shutter Door Roll Forming Machine With Punching

  • 1
  • 2

Brand Name : shitong

Model Number : ST 128

Certification : CE/ ISO9001

Place of Origin : CHINA

MOQ : 1 SET

Price : contact me to get the lowest price

Payment Terms : L/C, T/T, Western Union

Supply Ability : 35 sets per month

Delivery Time : 30 days

Packaging Details : the main machine is nude

name : garage door panel production line rolling door manufacturing machine

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service,Online support,Field installation

Warranty : 2 Years

Raw material : PPGI,Color Steel Sheet,Galvanized Sheet

Control system : PLC control box

Type : shutter door door frame machine

Roller material : 45# steel after hot treatment

Color : Client's Request

Cutting type : Hydraulic cutting

Shaft material : High Grade No.45 Forged

Production capacity : 8-12m/min

Contact Now

Garage door panel production line rolling door manufacturing machine with punching

Quick Details
1. Suitable Material Colored Steel plate, Galvanized Board, Aluminum Plate
2. Coil width 175mm
3. Effective width 120mm
4. Thickness 0.7-1.2mm
5. Color As you like
6. Appearance size(About) 5.0*0.8*1.3m
7. Rows of rollers 12 rows
8. Rolling material 45# steel,roller surfaces polishing, hard plating
9. Diameter of shaft ￠38mm
10. Service life 7 years
11. Total power 3.7 KW
12. Productivity 15-20m/min
13. Cut Mode Hydraulic forming after cutting off
14. Cutter material Cr12 Heat Treatment
15. Electronic control system PLC, Touch Screen, Encoding counter

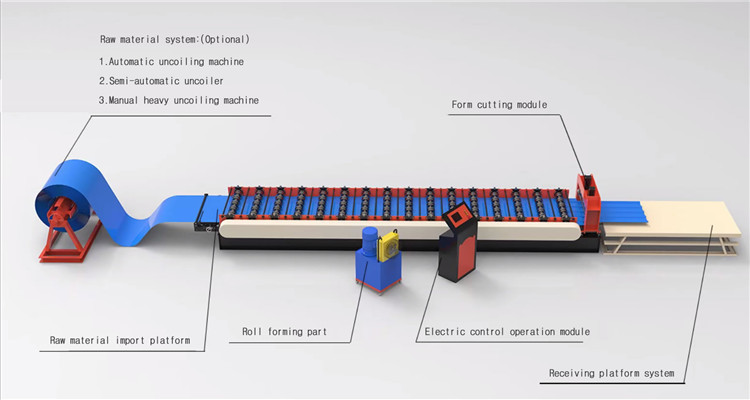

Standard Configuration:

Motor decoiler 1 set
Servo punching machine 1 set
Main roll forming machine 1 set
Hydraulic pump 1 set
PLC control system 1 set
Receiving Stands 2 sets
Spare parts 1 box

Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 20 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.Hydraulic Cutting Ppgi Shutter Door Roll Forming Machine With Punching

Hydraulic Cutting Ppgi Shutter Door Roll Forming Machine With Punching
