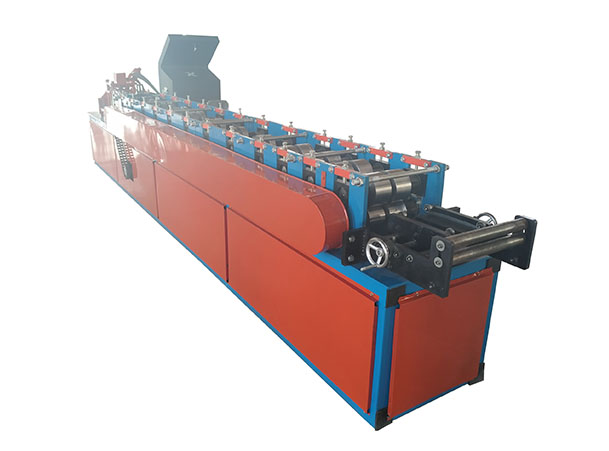

C Type Cable Tray Manufacturing 1mm Metal Roll Forming Machine

Brand Name : SHITONG

Model Number : C89

Certification : ISO,CE

Place of Origin : Cangzhou, China

MOQ : 1 set

Price : Contact us get the best price

Payment Terms : L/C,T/T

Supply Ability : 20sets/month

Delivery Time : 40-60 days

Packaging Details : Loading container

Machine Size : 5.6*1.4*1.5m

Thickness of matrial : 0.5-1mm

Forming steps : 12 steps

Control system : PLC automatically control

name : steel frame roll forming machine

Punching : hydraulic punching system

Material of shafts : High grade 45# forged steel

Material of blade : Cr12 Heat Treatment

Weight(About) : 1.6tons

Speed : 4-6 m/min

Contact Now

China supplier c type cable tray manufacturing roll forming machine

1. Galvanized steel C shape steel keel roll forming machine with hydraulic punching system

--- Serval group continuous forming rollers let the galvainized steel easy forming.

--- During forming, a hydraulic punch mold can puch holes on the frame.

--- A PLC control program can control the forming and punching coordinately.

--- The finally products use for steel construction frames.

2. Galvanized steel C shape steel keel roll forming machine with hydraulic punching system parameters

parameters
Production Capacity 8-12 m/min
Power(W) 4+4KW
Voltage 380V 50Hz 3phases
Dimension(L*W*H) 5600*800*1500mm
Weight 2 T
Suitable material Colored Steel plate, galvanized board, Aluminum plate
Width of the raw material 150-300 mm
Rows of rollers 12 rows
Material of roller High grade 45# steel(plated chrome on surface)
Thickness of raw material 0.3-0.8 mm
Certification ISO
Tile Type Tile Cutting Machine

Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


Options & Upgrades helps you:
1 - Boost product quality
2 - Increase efficiency
3 - Reduce Total Cost of Ownership
4 - Future-proof your productivity

FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point.
Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.

Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.

Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.

Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West

3. How to visit your company?
A. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.

6.Our company provides design layout drawings, designers with professional qualifications, according to your layout parameters, for you to exclusively design machine solutions, we can also design the machine according to the factory area you provide Land area, and labor demand.
